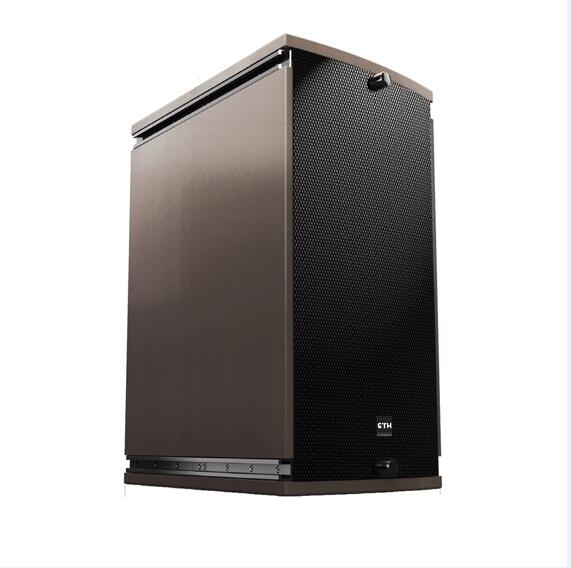

ARC15
Product model: arc15
Product Name: 15 "linear array
Frequency response: 50Hz-20KHz
Coverage angle: 60 ° x 22.5 ° nominal (horizontal x vertical)
Maximum sound pressure: 139db
Sensitivity: 98dB
Power (continuous power / peak power): 700W / 2000W
Recommended supporting amplifier: 800-1200W into 8ohms
Treble: 1 x 3 "(75mm voice coil) neodymium driver
Bass: 1x 15 "; 99.5mm voice coil, neodymium
Impedance: 8ohm
Box: 18mm class a plywood, Brown / Black environmental friendly waterborne paint, 1.5mm black iron mesh with 7mm cotton
Connecting plug: 2xnl4
Size: 439820x652mm
Weight: 48 / 50kg
