Q18S & Q10

Modelo: Q-18  SUB
Frequency Response: 40Hz-130Hz
Max SPL a 1 m: 134dB
System Sensitivity (1w @ 1m):  98dB
Power Rating(Continuous / Peak): 650W/2000W
Recommend Amps:   800-1200W into 8ohms
LF Driver:18”125mm voice coil,ferrite
Nominal Impedance:  8ohm
Enclosure: 18mm Russia birch wood and Environment protect  finishing. Good quality rigging hardware and
2.0mm front black grill with 8mm foam.
Input Connectors: 2XNL4
Dimensions (H x W x D): For shipping  730x554x644mm
N.W/G.W: 43 /45KG

Modelo: Q-10  Line array Passivo
Frequency Response: 60Hz-17KHz
Vertical  Cover Angle : 75o x 15o nominal (horizontal x vertical)
Max SPL a 1 m: 135dB
System Sensitivity (1w @ 1m):  98dB
Power Rating(Continuous / Peak): 700W/2000W
Recommend Amps:   800-1200W into 8ohms
LF Driver:  2x 10”(253mm dia);  63.5mm voice coil, Neodymium
HF Driver:   1x 3” (75mm voice coil ) neodymium driver.
Nominal Impedance:  8ohm
Enclosure: 18mm Russia birch wood and Environment protect  finishing.
Good quality rigging hardware and 2.0mm front black grill with 8mm foam.
Input Connectors: 2XNL4
Dimensions (H x W x D): For shipping  473x374x644mm
N.W/G.W: 21 /22KG

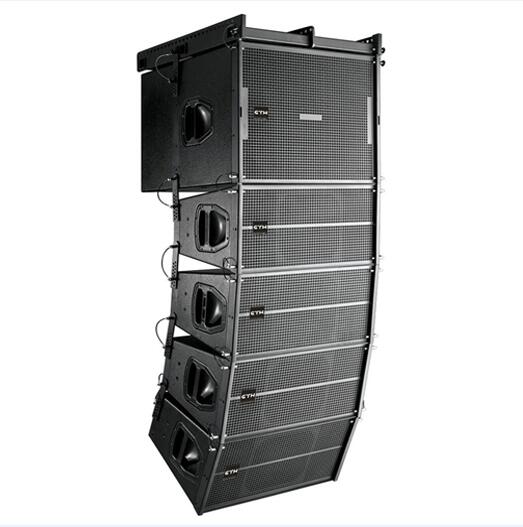

The Q18S &Q10amp; Q10 array system is the best choice for the system engineering such as the small performance, the conference, the concert, the multi function hall and so on.! Q18S is a single 18 with the ultra low frequency line array speaker system, configurable Q10 line array series speakers use. Q18S box adopts 18mm multilayer high-density birch plywood, outside the box body by high strength black resin particles spray paint, metal shed steel grid net, attached to the inside through the dust acoustic sponge. Box dust, moisture design, to ensure that the dust, smoke, humidity environment can work stably.

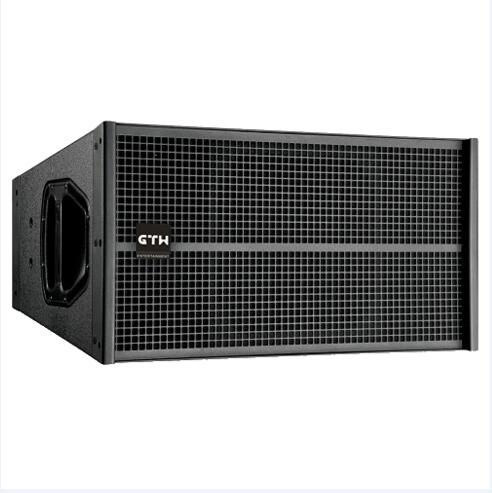

Q10 is a double 10 inch line array; speaker in low frequency selected two 10 "high power neodymium boron unit, unit of unique design, new materials, effectively enhance the unit load power, more suitable for working under high power state for a long time, to ensure the unit use the process to achieve high fidelity, wide frequency range, loud pressure. A high frequency uses a 3 - neodymium magnetic boron high, with a drum shaped waveguide horn. The directional coverage angle of 75 is 15, and the frequency is effectively controlled in the range of need, and the reflection of acoustic wave is greatly reduced.. The directivity of the verticality is 15 degrees, so that Q10 can be used for vertical array and surface wave front in front of the array. Neodymium boron efficient energy drive unit, the quality of play to the extreme, voice clear, mellow voice frequency, smooth. When the ultra-low frequency effect is required, the combination of the Q18S line array and the super bass can be matched with the sound quality..
